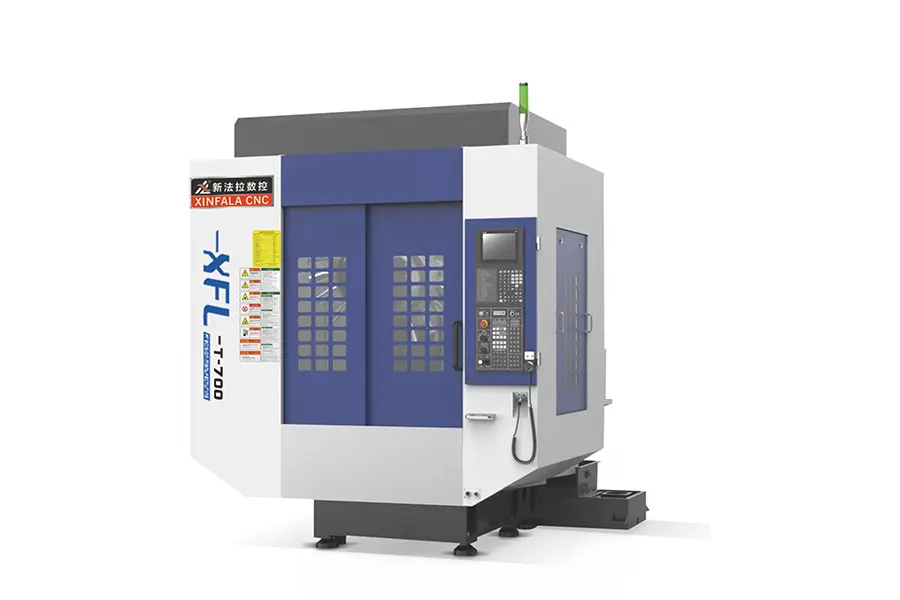

T7 Drilling and Tapping Center for Efficient Machining
PRODUCT FUNCTION
Functions: Milling, boring, drilling, tapping, and other multi-process machining;
PRODUCT FEATURES
Direct-Drive Spindle: Delivers powerful torque and ultra-high speeds for high-speed, high-precision machining.
Servo Tool Magazine: Features rapid tool changes and high accuracy, significantly reducing non-cutting time.
Efficient Chip Evacuation: The steep chip ramp design effectively flushes chips, preventing buildup.
Intelligent Mechatronics: Optimizes motion paths, eliminates idle movements, and enhances production efficiency.
Real-Time Sensor Monitoring: Continuously monitors spindle load, temperature, and vibration, automatically adjusting feed rates to extend tool life and improve surface finish.
TECHNICAL PARAMETER
| Project | Unit | XFL-T600 | XFL-T750 |
| X/Y/Z axis travel | mm | 600/400/320 | 700/500/330 |
| Workbench dimensions | mm | 700*420 | 820*460 |
| Workbench load capacity | kg | 300 | 350 |
| Workbench T-slot specifications | 3-14*120 | 3-14*130 | |
| Distance from spindle end face to workbench center | mm | 145-465 | 150-480 |
| Spindle taper specifications, speed | rpm | BT30-¢100-20000 (Direct connection) | BT30-¢100-20000 (Direct connection) |
| spindle motor | kw | 5.5 | 5.5 |
| X/Y/Z axis motor power | kw | 1.5/1.5/3 | 1.5/1.5/3 |
| X/Y/Z axis fast displacement | m/min | 48/48/48 | 48/48/48 |
| Maximum cutting speed | m/min | 5-20 | 5-20 |
| X/Y/Z axis positioning accuracy | mm | 0.008/0.005/0.005 | 0.008/0.005/0.005 |
| X/Y/Z axis repeat positioning accuracy | mm | 0.006/0.004/0.004 | 0.006/0.004/0.004 |
| X/Y/Z axis rail specifications (roller) | 30/30/30 | 30/30/35 | |
| X/Y/Z axis lead screw specifications (ball) | 2816/2816/3216 | 3216/3216/3216 | |
| Machine weight (approx.) | kg | 3000 | 3200 |
| Machine dimensions (L x W x H) (approx.) | mm | 2100*2570*2385 | 2184*2555*2449 |
| CNC system | MITSUBISHI / FANUC | MITSUBISHI / FANUC |
PRODUCT application
This product is designed for demanding industries and is an ideal choice for:
Aerospace: Machining high-strength alloy parts such as turbine blades and structural components.
Medical Devices: Manufacturing medical implants and surgical instruments that require extreme precision and surface quality.
Precision Molds: Producing high-gloss, high-precision molds for industries like injection molding and die casting
Radiator
Fork Frame Processing
Parts Processing
Aluminum Mold
