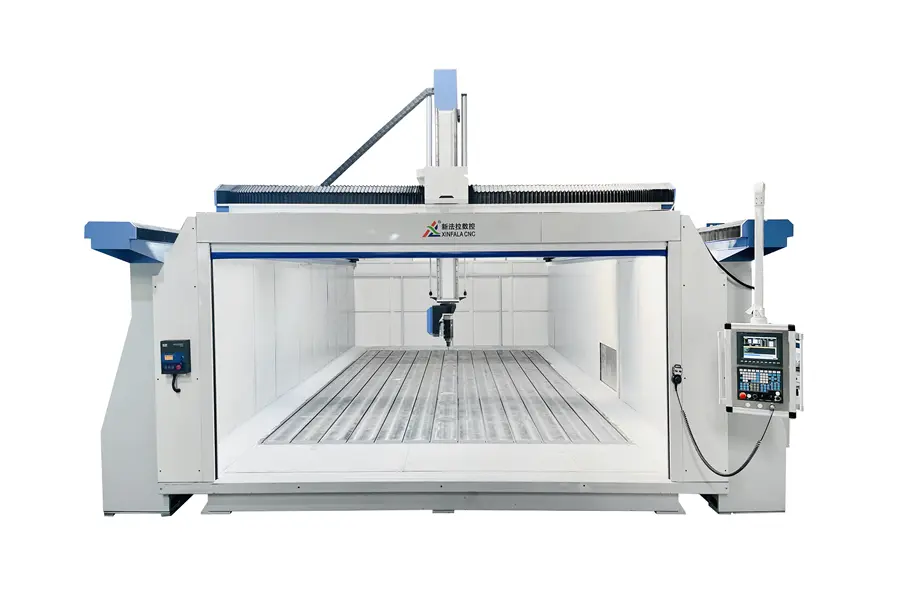

4070 Bridge Gantry Five Axis Machining Center

● Adopting a high rigidity gantry bridge structure and undergoing strict secondary tempering aging treatment to eliminate internal stress, the cutting rigidity and smoothness of the machine tool are effectively ensured, achieving long-term stable use without deformation;

● Adopting a five axis five linkage control system with RTCP tool tip tracking function, the machine tool automatically compensates for offset,  improves machining accuracy, and can process multiple complex irregular surfaces at once;

● We use imported high-quality AC servo motors, ball screws, linear slides, and electrical components to ensure that the equipment has high processing accuracy.

    Contact us
    product details

    PRODUCT FUNCTION

    Function: Cutting, punching, milling, trimming, polishing

    TECHNICAL PARAMETER

    Machine tool category Customized high-end configuration (high-end configuration, exclusive customization) Standard Utility Model (Classic Configuration, Stable and Reliable) Affordable model (basic functions, affordable)
    XYZ axis travel 4000*7000*1600mm 4000*7000*1600mm 4000*7000*1600mm
    Machinable Materials Metal materials:copper, aluminum, iron, steel, etc Non metallic materials:composite materials, plastic products, wood substitutes, foam, wood molds, etc Non metallic materials:composite materials, plastic products, wood substitutes, foam, wood molds, etc
    Body configuration Cast iron bed, annealed, with a total weight of approximately 35 tons Welded bed body, annealed treatment, total weigh to of approximately 29 tons Welded bed body, annealed treatment, total weight of approximately 22 tons
    drive system German brand guide rail, XY axis rack and Z-axis screw, grating ruler, reducer Taiwan brand guide rail, XY axis rack and Z-axis screw, reducer Taiwan brand guide rail, XY axis rack and Z-axis screw, reducer
    Motor and Drive Optional German Siemens, Heidenhain motor drive HNC/Japan Yaskawa AC servo motor drive Yaskawa AC servo motor drive in Japan
    Control system Optional German Siemens, Heidenhain Control System State owned enterprise HNC five axis control system Taiwan SYNTEC/Shanghai Lynuc Five Axis Control System
    Spindle configuration Imported well-known brand spindle 25KWautomatic tool changing spindle 9KW automatic tool changing spindle
    Options RTCP tool tip following function, vacuum suction, hidden tool magazine Equipped with RTCP function, vacuum adsorption, and a disc 8-tool magazine RTCP tool tip following function and hidden tool magazine
    Warranty period Complete machine warranty for five years (excluding vulnerable parts) Complete machine warranty for three years (excluding vulnerable parts) One year warranty for the entire machine ( excluding vulnerable parts)

    PRODUCT application

    Bridge Gantry Five Axis Machining Center (3)

    Wind Power Generation

    Bridge Gantry Five Axis Machining Center (4)

    Drones

    Bridge Gantry Five Axis Machining Center (2)

    Carbon Fibre Frames

    Bridge Gantry Five Axis Machining Center (5)

    Yachts and Ships
