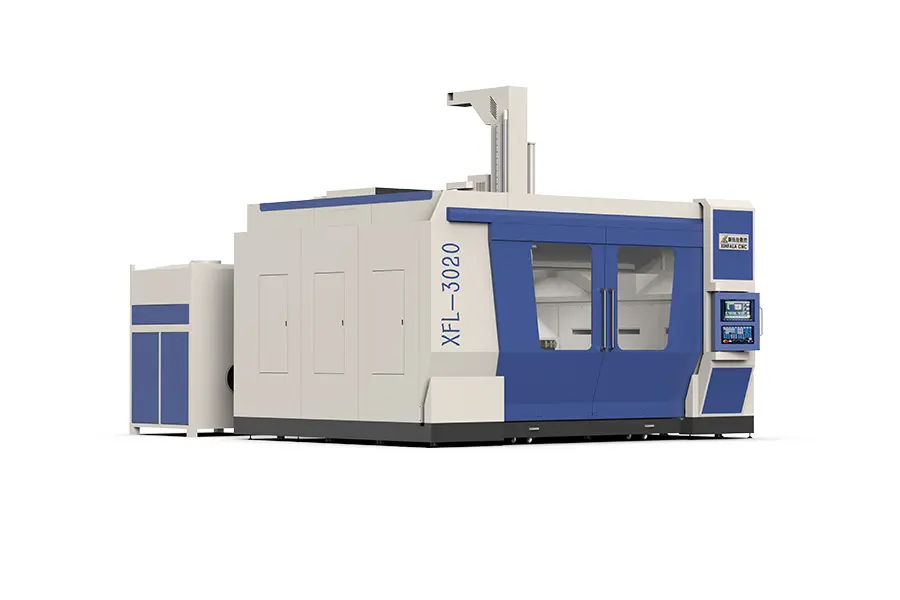

3020, 2010 Fully Enclosed Five Axis Machining Center

● The machine tool is protected by a full over sheet metal, forming a fully enclosed structure, equipped with industrial grade dust and odor removal equipment, effectively preventing any splashing of waste and improving the safety performance of the equipment;

● Adopting a five axis five linkage control system with RTCP tool tip following function, the machine tool automatically compensates for offset,  improves machining accuracy, and can process multiple complex irregular surfaces at once;

● The spindle adopts a closed constant temperature cooling control system, and uses imported high-quality AC servo motors, ball screws, linear slides, and electrical accessories to ensure high machining accuracy of the equipment.

    Contact us
    product details

    PRODUCT FUNCTION

    Function: cutting, punching, milling, trimming, polishing

    TECHNICAL PARAMETER

    Machine tool category Customized high-end configuration (high-end configuration, exclusive customization) Standard Utility Model (Classic Configuration, Stable and Reliable) Affordable model(basic functions, affordable
    XYZ axis travel 3000*2000*1000mm| 2000*1000*800mm 3000*2000*1000mm| 2000*1000*800mm 3000*2000*1000mm| 2000*1000*800mm
    Machinable Materials Metal materials:copper, aluminum, iron, steel, etc Non metallic materials:composite materials, plastic products, wooden products, etc Non metallic materials:composite materials, plastic products, wooden products, etc
    Body configuration Cast iron bed, annealed, with a total weight of approximately 11 tons Thickened welded bed body, annealed treatment, total weight of approximately 9 tons Welded bed body, annealed treatment, total weight of approximately 7 tons
    Drive system German brand guide rail, full screw, grating ruler, reducer Taiwanese brand guide rails, screws, racks, reducers Domestic brand guide rails, screws, racks, reducers
    Motor and Drive Optional German Siemens, Heidenhain motor drive Taiwan's SYNTEC AC servo motor drive Domestic brand communication servo motor drive
    Control System Optional German Siemens, Heidenhain Control System Taiwan's SYNTEC control system Domestic brand Shanghai Lynuc System
    Spindle configuration Optional Ouli, Haiteke, HSD spindle 10KW Domestic brand 10KW automatic tool changing spindle Domestic brand Changlong 10KW air-cooled spindle
    Options Equipped with RTCP function, vacuum adsorption, and a disc 8-tool magazine Equipped with RTCP function, vacuum adsorption, and a disc 8-tool magazine Equipped with RTCP function, vacuum adsorption, and a disc 8-tool magazine
    Warranty period Complete machine warranty for five years (excluding vulnerable parts) Complete machine warranty for three years ( excluding vulnerable parts) One year warranty for the entire machine (excluding vulnerable parts)

    PRODUCT application

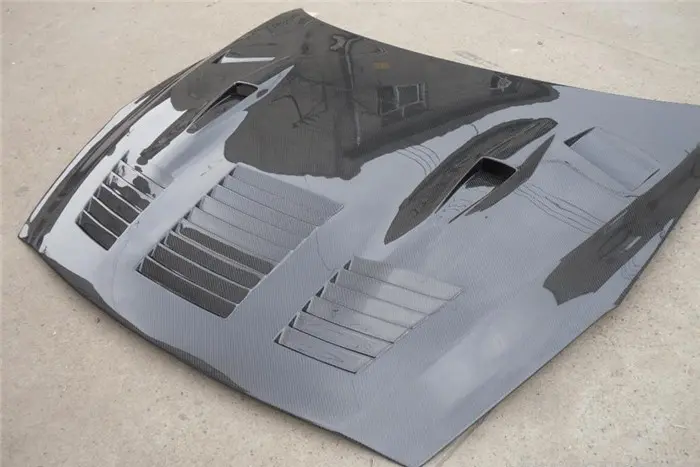

    Fully Enclosed Five Axis Machining Center (2)

    Car fenders

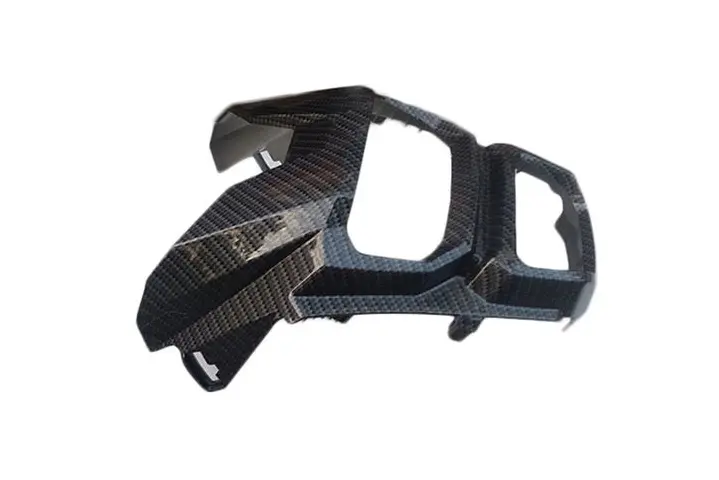

    Fully Enclosed Five Axis Machining Center (3)

    Car interior parts

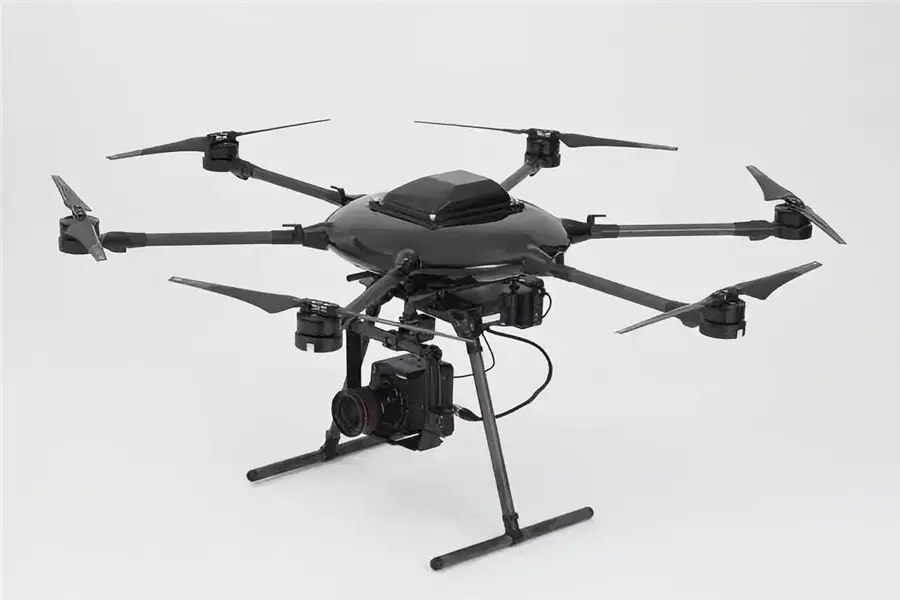

    Fully Enclosed Five Axis Machining Center (4)

    Drones

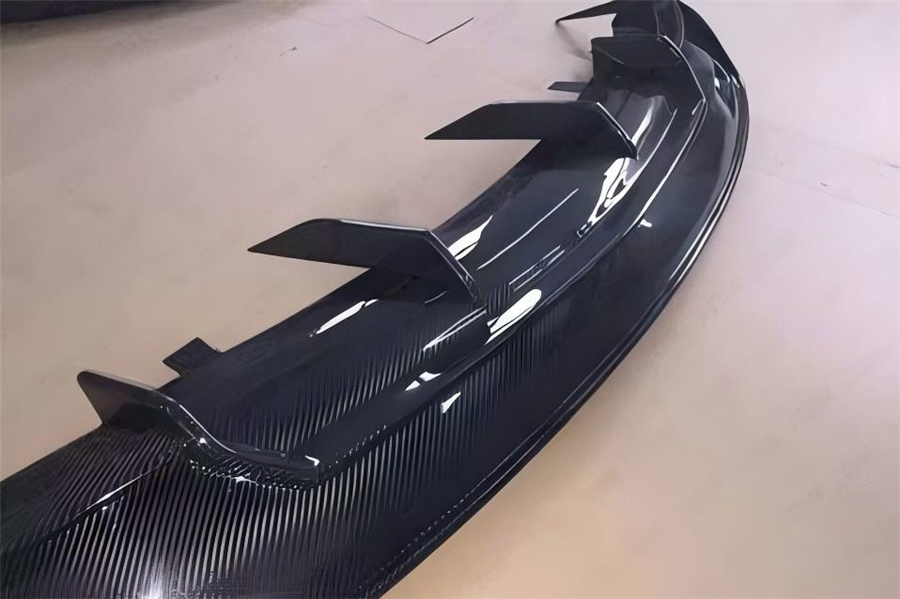

    Fully Enclosed Five Axis Machining Center (5)

    Carbon fibre surrounds
