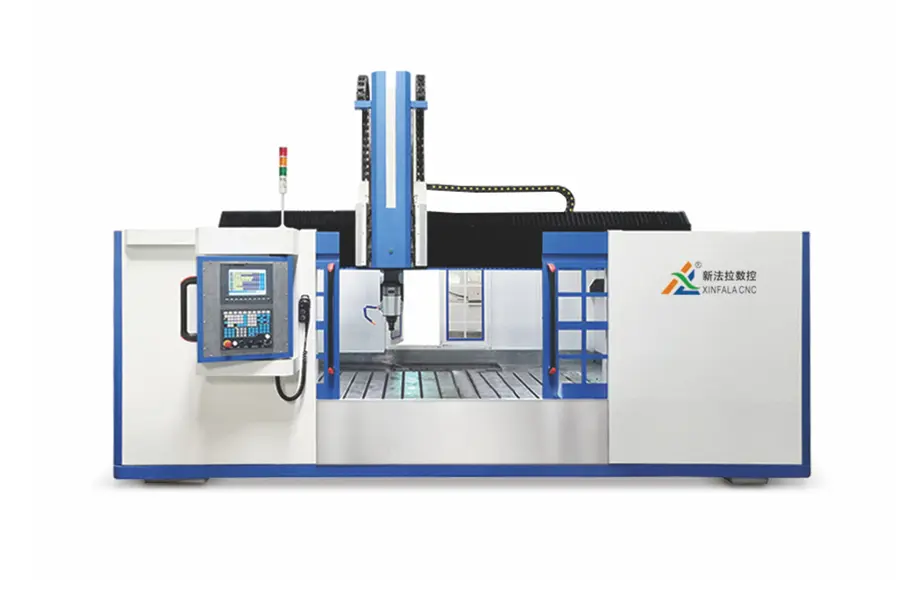

2513, 2516 Five Axis Machining Centers

● Adopting a double-beam box-in-box structure, with four guide rails installed on the Z-axis ram, it boasts extremely high load-bearing capacity and rigidity;

● Adopting a high-rigidity gantry bridge structure, and undergoing rigorous secondary tempering and aging treatment to eliminate internal stress, effectively ensures the cutting rigidity and stability of the machine tool, achieving long-term use without deformation;

● Equipped with a five-axis five-linkage control system and RTCP tool tip tracking function, the machine tool automatically compensates for offsets, enhancing machining accuracy and enabling the simultaneous processing of multiple complex irregular surfaces;

● Imported high-quality AC servo motors, ball screws, linear slide rails, and electrical components are used to ensure high machining accuracy of the equipment.

product details

PRODUCT FUNCTION

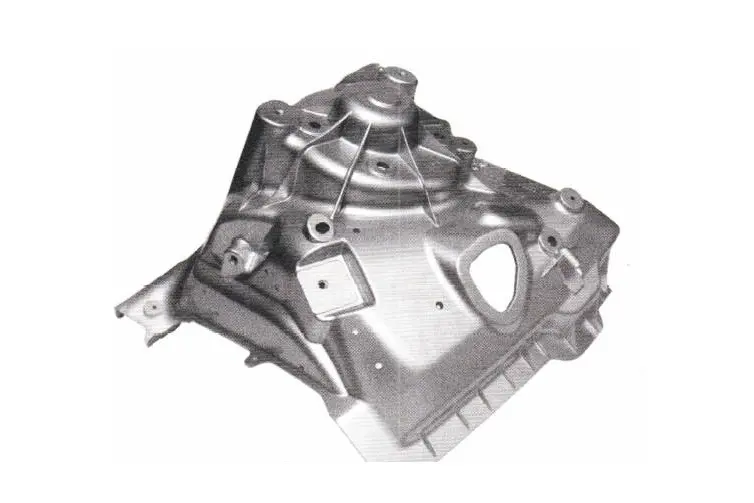

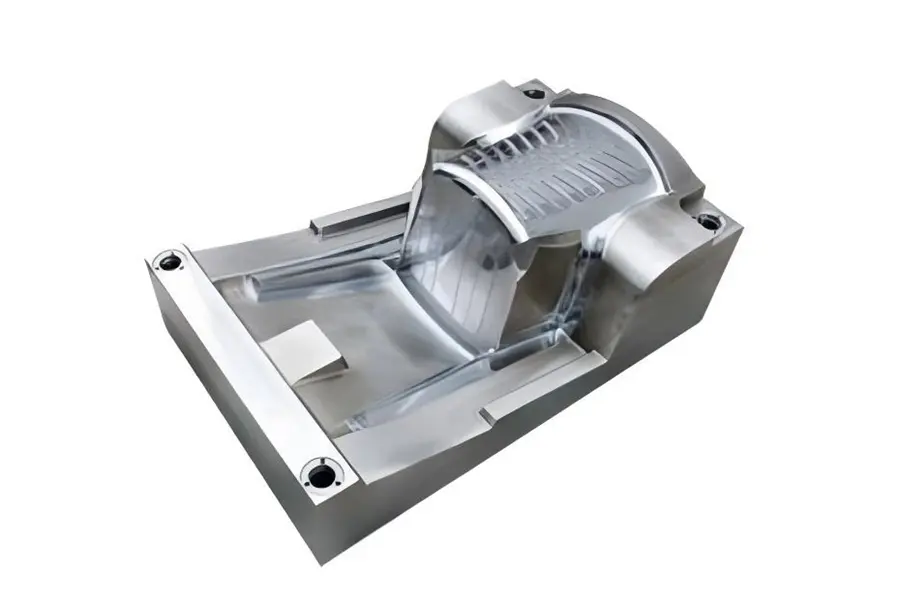

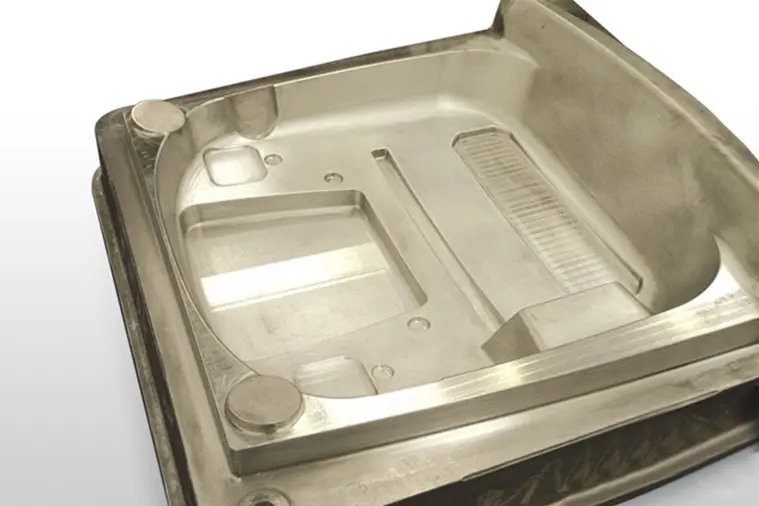

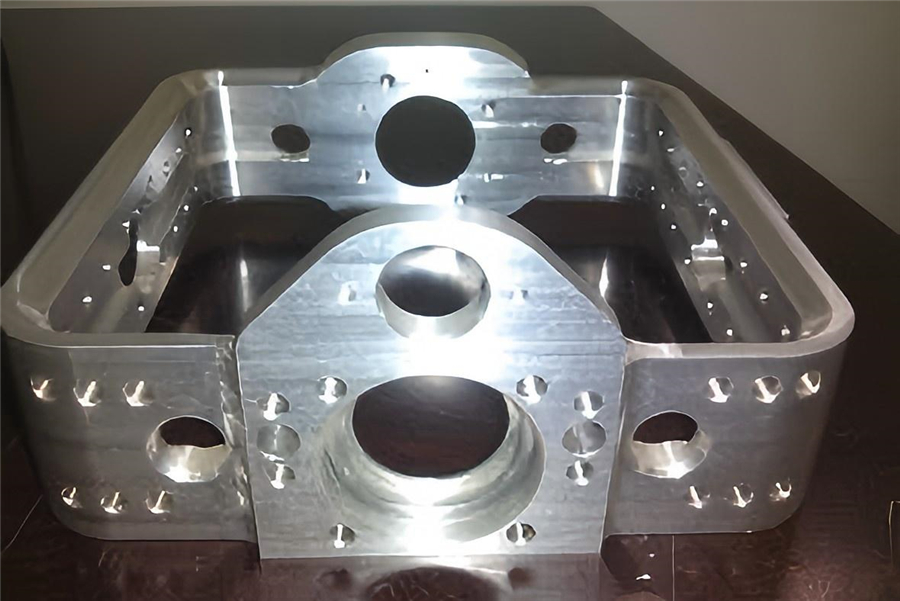

Function: cutting, punching, milling, trimming, polishing

TECHNICAL PARAMETER

Machine tool category	Customized high-end configuration (high-end configuration, exclusive customization)	Standard Utility Model (Classic Configuration, Stable and Reliable)	Affordable model(basic functions, affordable)
XYZ axis travel	25001300800mm 2500 1600*800mm	25001300800mm 25001600800mm	25001300800mm 25001600800mm
Machinable Materials	Metal materials:copper, aluminum, iron, steel, etc	Soft metal materials such as die-casting aluminum molds	Soft metal materials such as die-casting aluminum molds
Body configuration	Cast iron bed, annealed, with a total weight of approximately 19 tons	Welded bed frame, double-beam structure, annealing treatment, with a total weight of about 13 tons	Welded bed frame, double-beam structure, annealing treatment, with a total weight of about 9 tons
Drive system	German brand guide rail, full screw, grating ruler, reducer	Taiwanese brand guide rails, screws, reducers	Domestic brand guide rails, screws, reducers
Motor and Drive	Optional German Siemens, Heidenhain motor drive	Taiwan's SYNTEC AC servo motor drive	Domestic brand communication servo motor drive
Control system	Optional German Siemens, Heidenhain Control System	Taiwan's SYNTEC control system	Domestic brand Shanghai Lynuc System
Spindle configuration	Optional Ouli, Haiteke, HSD spindle 17KW	Domestic brand 17KW automatic tool change water-cooled spindle	Domestic brand 10KW water-cooled spindle
Options	With RTCP function, direct-row 8-tool magazine, and oil cooler	Equipped with RTCP function, direct-row 8-tool magazine, steel plate table, and oil cooler	Equipped with RTCP function, direct-row 8-tool magazine, steel plate table, and oil cooler
Warranty period	Complete machine warranty for five years (excluding vulnerable parts)	Complete machine warranty for three years (excluding vulnerable parts)	One year warranty for the entire machine (excluding vulnerable parts)
