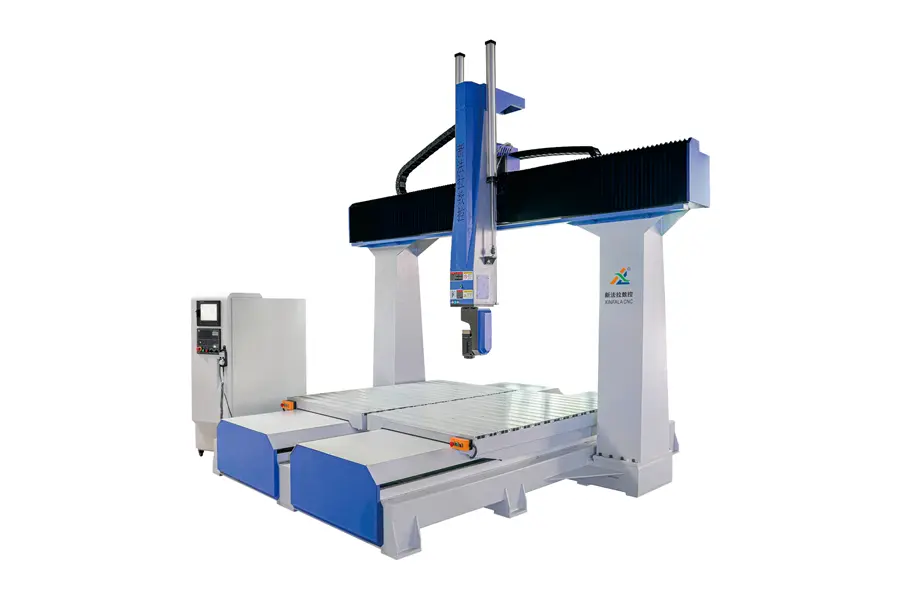

1520 Double Table Five Axis Carving Machine
PRODUCT FUNCTION
Function: cutting, punching, milling, trimming, polishing
PRODUCT Advantages
High structural rigidity: Meehanite cast iron and optimized fixed column design ensure stability under heavy cutting and high-speed machining.
Superior precision: Equipped with imported servo motors, ball screws, and linear guides for consistent, high-accuracy results.
Continuous productivity: Dual-station configuration enables machining and loading/unloading at the same time, reducing idle time.
Wide versatility: Capable of handling metals, composites, wood, and plastics for diverse industrial applications.
Long-term reliability: Wear-free direct drive system and enclosed tool magazine minimize maintenance needs and extend service life.
TECHNICAL PARAMETER
| Machine tool category | Customized high-end configuration (high-end configuration, exclusive customization) | Standard Utility Model (Classic Configuration, Stable and Reliable) | Affordable model (basic functions, affordable) |
| XYZ axis travel | Double countertop 1500*2000*1000mm*2 | Double countertop 1500*2000*1000mm*2 | Double countertop 1500*2000*1000mm*2 |
| Machinable Materials | Metal materials:copper, aluminum, iron, steel, etc | Non metallic materials:composite materials, plastic products, wooden products, etc | Non metallic materials:composite materials, plastic products, wooden products, etc |
| Body configuration | Cast iron bed, annealed, with a total weight of approximately 10 tons | Thickened welded bed body, annealed treatment, total weight of approximately 7 tons | Welded bed body, annealed treatment, total weight of approximately 5 tons |
| Drive system | German brand guide rail, full screw, grating ruler, reducer | Taiwanese brand guide rails, screws, racks, reducers | Domestic brand guide rails, screws, racks, reducers |
| Motor and Drive | Optional German Siemens, Heidenhain motor drive | Taiwan's SYNTEC AC servo motor drive | Domestic brand communication servo motor drive |
| Control system | Optional German Siemens, Heidenhain Control System | Taiwan's SYNTEC control system | Domestic brand Shanghai Lynuc System |
| Spindle configuration | Optional Ouli, Haiteke, HSD spindle 10KW | Domestic brand 9KW automatic tool changing spindle | Domestic brand Changlong 6KW air-cooled spindle |
| Options | Equipped with RTCP function, vacuum adsorption, and a disc 8-tool magazine | Equipped with RTCP function, vacuum adsorption, and a disc 8-tool magazine | No RTCP function, no vacuum adsorption |
| Warranty period | Complete machine warranty for five years (excluding vulnerable parts) | Complete machine warranty for three years (excluding vulnerable parts) | One year warranty for the entire machine (excluding vulnerable parts) |
PRODUCT application
This machine is widely applicable for:
New energy: Battery housings, energy storage components
3C electronics: Computer case shells, mobile device housings
Military & aerospace: Turbine blades, brackets, high-strength structural elements
Automotive parts: Car door handle interior parts, engine housings, transmission components
Bathroom equipment: Bathtubs, sanitary hardware components
Furniture industry: Solid wood furniture with precision joints and decorative surfaces
Small molds: Injection and die-casting molds
Medical equipment: Implants, surgical instruments, orthopedic devices

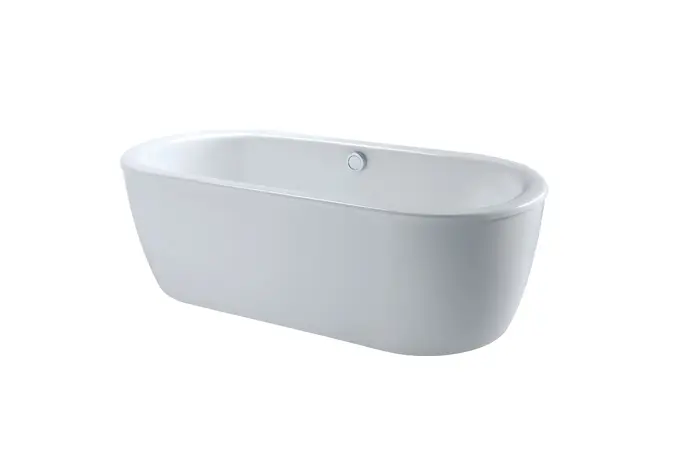

Bathroom bathtubs

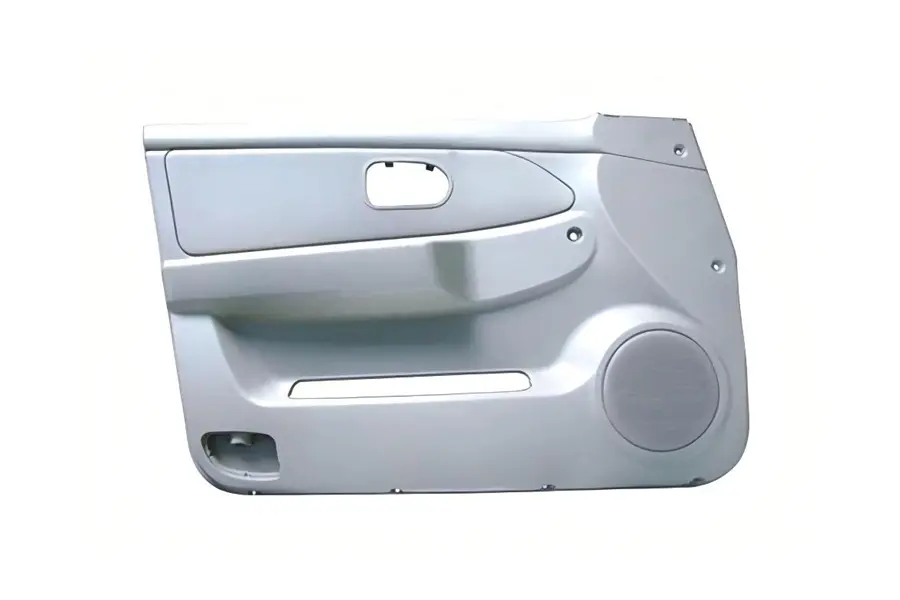

Car door handle interior parts
Solid wood furniture
Computer case shells
