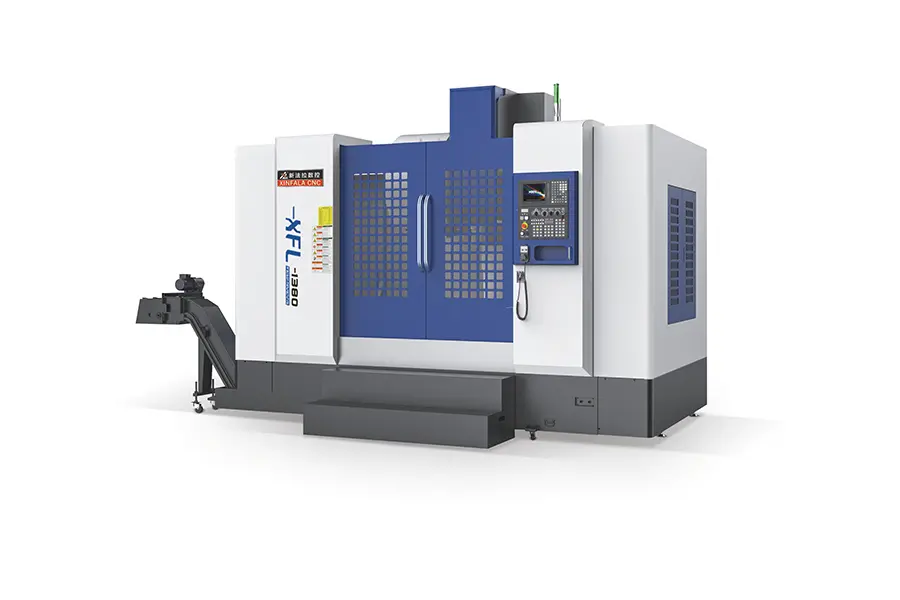

1380 Vertical Milling Machine for Versatile Machining Tasks
PRODUCT FUNCTION
Functions: Milling, boring, drilling, reaming, tapping, threading, and other multi-process machining;
PRODUCT Description
Precision Engineered Structure for Unmatched Stability
The machine features a fixed column and cross slide table design, supported by an extra-large stable base and high-rigidity, large-span A-frame columns. This robust construction minimizes deformation even during high-speed cutting operations, ensuring consistent performance and extended machine life.
Advanced Spindle System for Superior Accuracy
Equipped with a high-speed, high-precision spindle unit, the machine incorporates a labyrinth design and air curtain protection at the front end, effectively preventing contaminants from entering. The integrated circulating cooling system significantly reduces temperature rise and thermal deformation, maintaining exceptional machining accuracy over prolonged use.
Optimized Guideways and Cooling for Enhanced Efficiency
The three-axis guideways utilize high-rigidity linear rails, delivering smooth motion with low friction and noise. Standard features include rear water cooling, efficient chip removal, and a rear-mounted water tank design. The labyrinth-type filtration system ensures a continuous supply of clean cutting fluid, improving workpiece quality and tool life.
Intelligent Control and Versatile Machining Capabilities
Powered by a high-performance CNC system, the machine offers precise control and a comprehensive range of CNC machining and auxiliary functions. It supports multi-process operations such as milling, boring, drilling, reaming, tapping, and threading, making it ideal for complex parts manufacturing in industries like aerospace, automotive, and precision machinery.
TECHNICAL PARAMETER
| Project | Unit | XFL-1380 (Two lines and one hard) | XFL-1580 (Two lines and one hard) |
| X/Y/Z axis travel | mm | 1300/800/700 | 1500/800/700 |
| Workbench dimensions | mm | 1400*800 | 1700*810 |
| Workbench load capacity | kg | 1300 | 1600 |
| Workbench T-slot specifications | 7-18*110 | 7-22*110 | |
| Distance from spindle end face to workbench center | mm | 130-830 | standard configuration: 160-860 |
| optional: 150-850 | |||
| Spindle taper specifications, speed | rpm | BT50-155-8000 (belt) | BT50-155-8000 (belt) |
| spindle motor | kw | 15 | 15/18.5 |
| X/Y/Z axis motor power | kw | 3/3/3 | 3/3/3（4.5/4.5/4.5） |
| X/Y/Z axis fast displacement | m/min | 20/20/18 | 20/20/16 |
| Maximum cutting speed | m/min | 10 | 10 |
| X/Y/Z axis positioning accuracy | mm | 0.015/0.008/0.008 | 0.015/0.008/0.008 |
| X/Y/Z axis repeat positioning accuracy | mm | 0.012/0.006/0.006 | 0.012/0.006/0.006 |
| X/Y/Z axis rail specifications (roller) | 55/45 (four tracks)/hard track | Standard configuration: 45/45/hard rail | |
| Optional: 55/45/hard rail | |||
| X/Y/Z axis lead screw specifications (ball) | 5010/5010/5010 | 5010/5010/5010 | |
| Machine weight (approx.) | kg | 8500 | 9500 |
| Machine dimensions (L x W x H) (approx.) | mm | 4015*4192*3127 | 4215*4192*3127 |
| CNC system | MITSUBISHI / FANUC | MITSUBISHI / FANUC |
PRODUCT application
Widely used in the new energy, 3C electronics, military, aerospace, automotive parts, small molds, medical equipment, and other industries for the processing of small and medium-sized plates, discs, shells, precision parts, and molds.
Processing of Fork Frame Parts
Crafts
Aluminum Mold
Aluminum Mold
