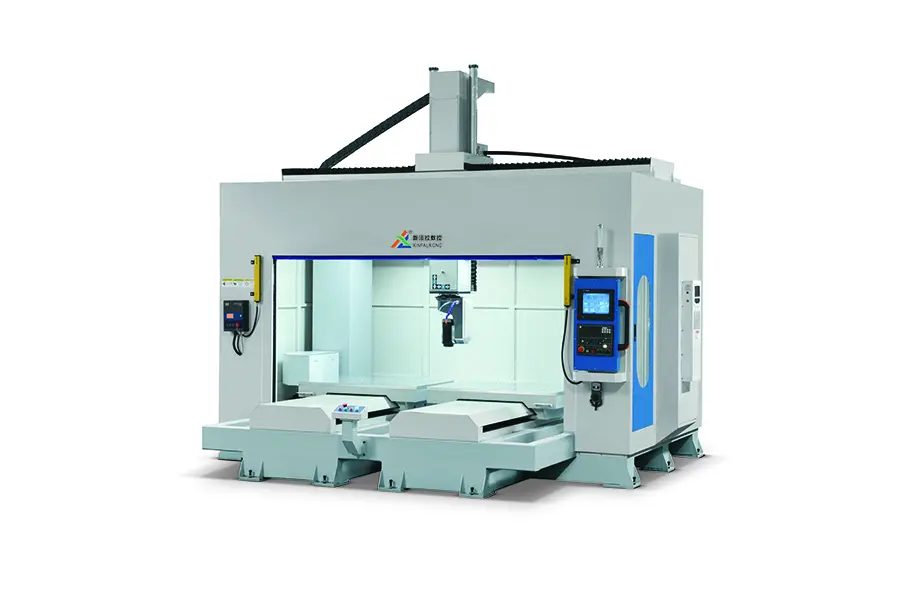

1280 Fully Enclosed Double Table Five Axis Machining Center

● This machine is a CNC five axis machining center that integrates five sided milling, oblique drilling, slotting, chamfering, engraving,and milling;

● Adopting a five axis five linkage control system with RTCP tool tip following function, the machine tool automatically compensates for offset, improves machining accuracy, and can process multiple complex irregular surfaces at once;

● The dual station can achieve uninterrupted production and processing of materials on a single workbench while loading on another workbench;

    Contact us
    product details

    PRODUCT FUNCTION

    Function: cutting, punching, milling, trimming, polishing

    PRODUCT Features

    Integrated multifunctional processing: Milling, drilling, chamfering, slotting, and engraving all performed in a single setup.

    Five-axis five-linkage control: Enables machining of irregular, multi-curved, and complex workpieces in one pass.

    RTCP tool-tip following function: Automatically adjusts tool positioning to maintain accuracy during contour machining.

    Dual-station design: Supports simultaneous machining and material handling, ensuring continuous operation.

    High machining accuracy: Offset compensation and dynamic control enhance precision for critical applications.

    Wide material compatibility: Suitable for metals, composites, plastics, and other advanced materials.

    Increased production efficiency: Reduces setup time and minimizes manual intervention.

    TECHNICAL PARAMETER

    Machine tool category Customized high-end configuration (high-end configuration, exclusive customization) Standard Utility Model (Classic Configuration, Stable and Reliable) Affordable model(basic functions, affordable)
    XYZ axis travel Double countertop 1200*800*800mm*2 Double countertop 1200*800*800mm*2 Double countertop 1200*800*800mm*2
    Machinable Materials metal materials:copper, aluminum, iron, steel, etc Non metallic materials: composite materials, plastic products, wooden products, etc Non metallic materials: composite materials, plastic products, wooden products, etc
    Body configuration Cast iron bed, annealed, with a total weight of approximately 12 tons Thickened welded bed body, annealed treatment, total weight of approximately 8 tons Welded bed body, annealed treatment, total weight of approximately 5 tons
    drive system German brand guide rail, full screw, grating ruler, reducer Taiwanese brand guide rails,screws, racks,reducers Domestic brand guide rails, screws,racks,reducers
    Motorand Drive Optional German Siemens, Heidenhain motor drive Taiwan's SYNTEC AC servo motor drive Domestic brand communication servo motor drive
    control system Optional German Siemens, Heidenhain Control System Taiwan's SYNTEC control system Domestic brand Shanghai Lynuc System
    Spindle configuration Optional ouli, Haiteke, HSD spindle 10KW Domestic brand 10KW automatic tool changing spindle Domestic brand Changlong 10KW air-cooled spindle
    Options Equipped with RTCP function,vacuum adsorption,and a disc 8-tool magazine Equipped with RTCP function, vacuum adsorption, and a disc 8-tool magazine Equipped with RTCP function, vacuum adsorption, and a disc 8-toolmagazine
    Warranty period Complete machine warranty for five years (excluding vulnerable parts) Complete machine warranty for three years (excluding vulnerable parts) One year warranty for the entire machine (excluding vulnerable parts)

    PRODUCT application

    Automotive industry: Complex engine components, molds, and structural parts requiring multi-surface precision.

    Aerospace sector: High-strength, irregular-shaped turbine blades, aircraft brackets, and lightweight structural elements.

    Medical equipment: Custom implants, orthopedic components, and surgical instruments with intricate geometries.

    Mold and die manufacturing: High-precision cavities, core parts, and prototypes for plastic, metal, and composite materials.

    General manufacturing: Precision parts for electronics, energy, and high-end consumer products.

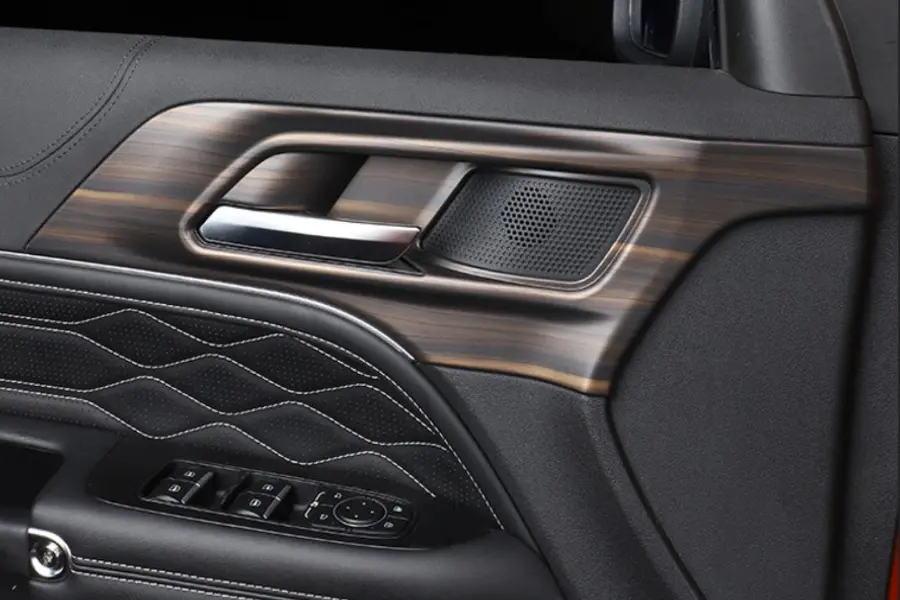

    Fully Enclosed Double Table Five Axis Machining Center (2)

    Car Door Handle

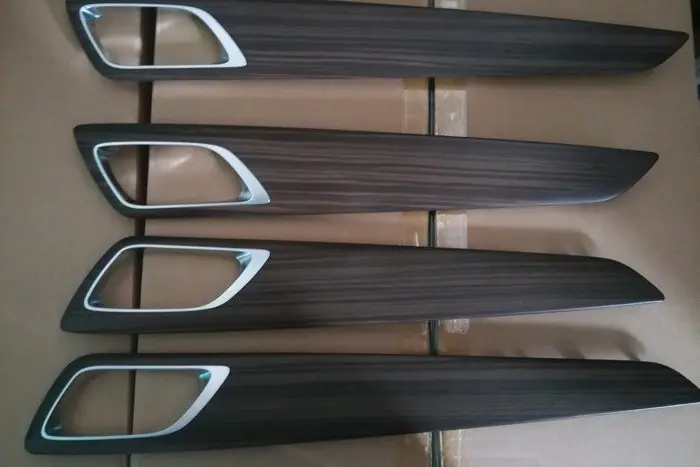

    Fully Enclosed Double Table Five Axis Machining Center (3)

    Car Door Handle

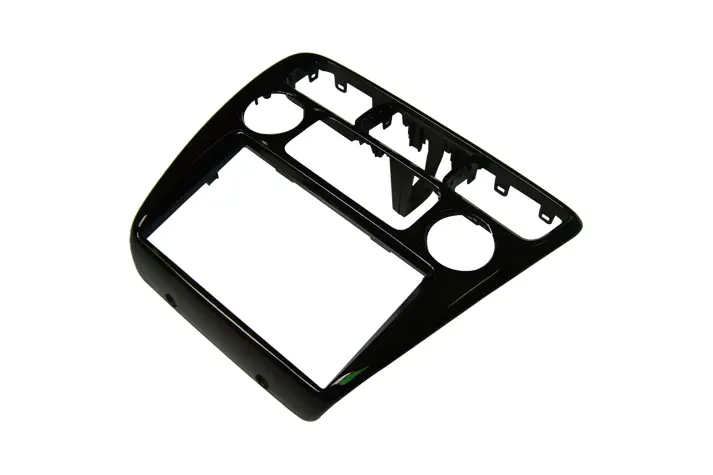

    Fully Enclosed Double Table Five Axis Machining Center (4)

    Car Centre Console

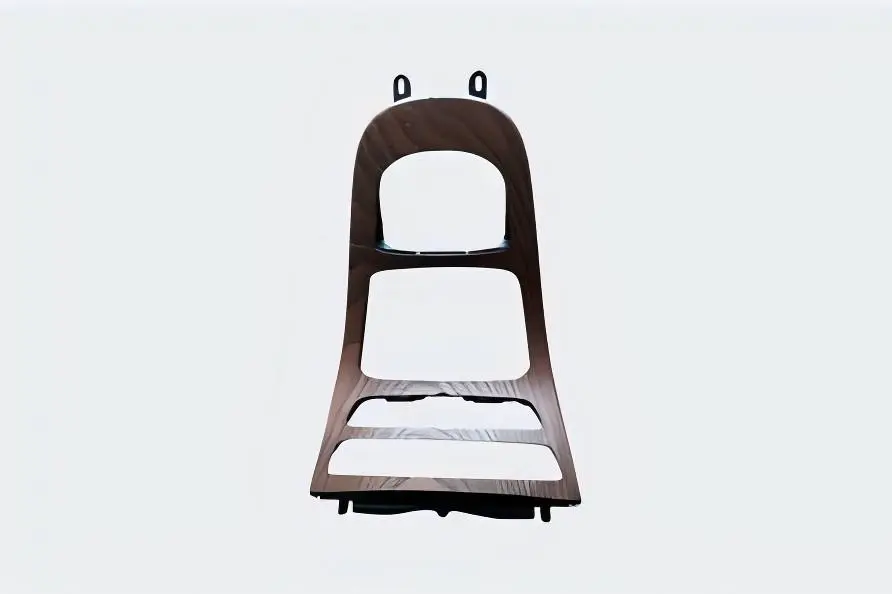

    Fully Enclosed Double Table Five Axis Machining Center (5)

    Car Centre Console
